Aluminum Profile

Product name:

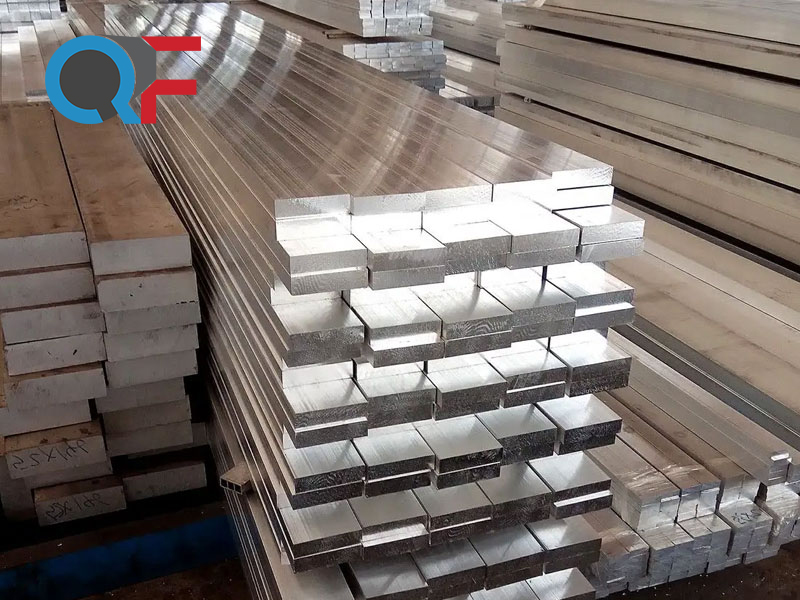

2A12 Aluminum Flat Bar
Aluminum flat bar refers to steel 12-300mm wide and 3-60mm thick, rectangular in section and slightly blunt edge. It can also be used as blank for welded pipes and thin slabs for stacking sheets. The sides are vertical, and the water chestnut horns are clear. The second vertical rolling in the finishing rolling has good verticality on both sides, clear angles, and good surface quality of the edges.
INFORMATION PRODUCTS

‹

›

‹

  • 2A12 Aluminum Flat Bar
  • 2A12 Aluminum Flat Bar
  • 2A12 Aluminum Flat Bar

›

Product Details
Chemical Composition
Mechanical Behavior
Item Aluminum Flat / Angle / Bar
Standard GB/T3190-2008 JIS H4040:2006 JIS H4001:2006  ASTM B221M:2006   ASTM B209M:2006  IOS 209:2007(E) EN 573-3:2003  etc...
Size Thickness:0.1~200mm or as required
Width:0.1-20mm or as required
Size can be customized according to customer needs
Surface Anodized,Mill finished,Polished,Power,etc
ApplicationIndustrial,etc
PackagingStandard export package ,or as required
Price termEXW,FOB,CIF,CFR,ect...
Payment T/T,L/C,Westerm Union,etc
Certificates IOS/SGS/BV
Alloy%Si%Mg%Mn%Cu%Fe%Cr%Zn%Ti%Others%Al
EN AW-1050 A0.25Max0.05Max0.05Max0.05Max0.40Max–0.07Max0.05Max–99.5 Min
EN AW-1070 A0.20Max0.03Max0.03Max0.03Max0.25Max–0.07Max0.03Max–99.7 Min
EN AW-1100Si+Fe 0.95 Max–0.05 Max0.05 – 0.20––0.10 Max0.05 Max–99.0 Min
EN AW-20110.40 Max––5.00 – 6.000.70 Max–0.30 Max–Bi : 0.20 – 0.60Pb : 0.20 – 0.60Remainder
EN AW-20140.50 – 1.200.20 – 0.800.40 – 1.203.90 – 5.000.70 Max0.10 Max0.25 Max0.15 Max–Remainder
EN AW-20240.50 Max1.20 -1.800.30 – 0.903.80 – 4.900.50 Max0.10 Max0.25 Max0.15 Max0.15 MaxRemainder
EN AW-30030.60 Max–1.00 – 1.500.05 – 0.200.70 Max–0.10 Max–0.15 MaxRemainder
EN AW-31030.50 Max0.30 Max0.90 – 1.500.10 Max0.70 Max0.10 Max0.20 Max0.10 Max–Remainder
EN AW-6101A0.30 – 0.70.40 – 0.900.03 Max0.05 Max0.40 Max–––0.10 MaxRemainder
EN AW-60050.60 – 0.900.40 – 0.600.10 Max0.10 Max0.35 Max0.10 Max0.10 Max0.10 Max–Remainder
EN AW-63510.70 – 1.300.40 – 0.800.40 – 0.800.10 Max0.50 Max–0.20 Max0.20 Max0.15 MaxRemainder
EN AW-60600.30 – 0.600.35 – 0.600.10 Max0.10 Max0.10 – 0.300.05 Max0.15 Max0.10 Max–Remainder
EN AW-60610.40 – 0.800.80 – 1.200.15 Max0.15 – 0.400.70 Max0.04 – 0.350.25 Max0.15 Max–Remainder
EN AW-60630.20 – 0.600.45 – 0.900.10 Max0.10 Max0.35 Max0.10 Max0.10 Max0.10 Max–Remainder
EN AW-60820.70 – 1.300.60 -1.200.40 – 1.000.10 Max0.50 Max0.25 Max0.20 Max0.10 Max–Remainder
AlloyTemperUTS (Mpa)Yield Strength (Mpa)Elongation (%)

MinimumMaximumMinimumMaximumA 50mm (Minimum)
EN AW-1050 AF60–20–23
O609520–23
EN AW-1070 AF60–20–23
EN AW-1100O75110––25
EN AW-2011T4275–125–12
T6310–230–6
EN AW-2014O–250–13510
T4370–230–11
T6415–370–5
EN AW-2024O–250–15010
T3,T3510,T3511395–290–6
T8,T8510,T8511455–380–4
EN AW-3003F95–35–20
O9513535–20
EN AW-3103F95–35–20
O9513535–20
EN AW-6101AT6200–170–8
EN AW-6005T4180–90–13
T6270–225–6
EN AW-6351O–160–11012
T4205–110–12
T6290–250–6
EN AW-6060T4120–601412
T5160–120–6
T6190–150–6
T64180–120–10
T66215–160–6
EN AW-6061O–150–11014
T4180–110–13
T6260–240–6
EN AW-6063O–130––16
T4130–65–12
T5175–130–6
T6215–170–6
T66245–200–6
EN AW-6082O–160–11012
T4205–110–12
T5270–230–6
T6290–250–6
