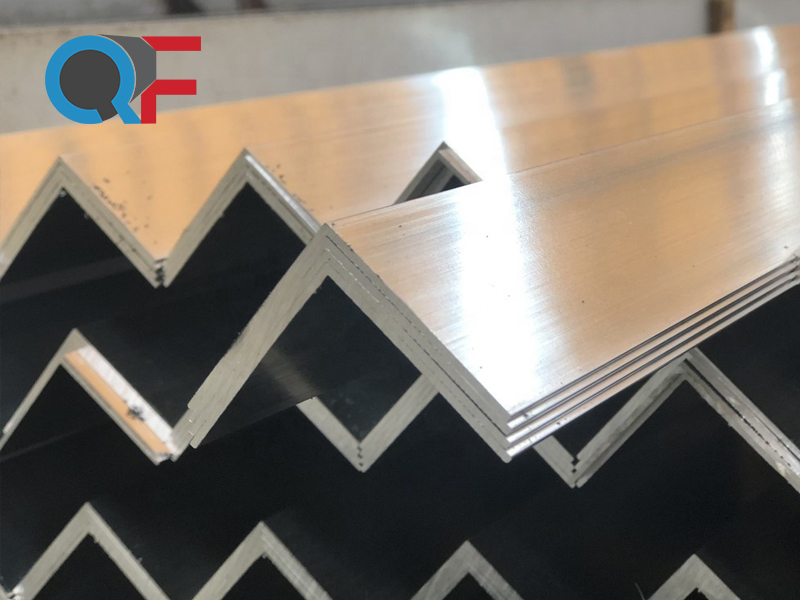

Name: 1050 Aluminum Angle Bar
SKU: 0

Aluminum Profile



Location： ГЛАВНАЯ > PRODUCTS > Profile Steel > Aluminum Profile > 1050 Aluminum Angle Bar

Product name:

1050 Aluminum Angle Bar

Angle aluminum is two sides perpendicular to each other intersecting aluminum profile, it is L-shaped, the side length from ten mm to one or two hundred mm, thickness from one millimeter to tens of millimeters, angle aluminum can be divided into equilateral angle aluminum and unequal corner aluminum, equal angle aluminum is two sides are equal length aluminum profiles.

INFORMATION PRODUCTS

Product Details

Chemical Composition

Mechanical Behavior

Item	Aluminum Flat / Angle / Bar
Standard	GB/T3190-2008 JIS H4040:2006 JIS H4001:2006 ASTM B221M:2006 ASTM B209M:2006 IOS 209:2007(E) EN 573-3:2003 etc...
Size	Thickness:0.1~200mm or as required
	Width:0.1-20mm or as required
	Size can be customized according to customer needs
Surface	Anodized,Mill finished,Polished,Power,etc
Application	Industrial,etc
Packaging	Standard export package ,or as required
Price term	EXW,FOB,CIF,CFR,ect...
Payment	T/T,L/C,Westerm Union,etc
Certificates	IOS/SGS/BV

Alloy	%Si	%Mg	%Mn	%Cu	%Fe	%Cr	%Zn	%Ti	%Others	%Al
EN AW-1050 A	0.25Max	0.05Max	0.05Max	0.05Max	0.40Max	–	0.07Max	0.05Max	–	99.5 Min
EN AW-1070 A	0.20Max	0.03Max	0.03Max	0.03Max	0.25Max	–	0.07Max	0.03Max	–	99.7 Min
EN AW-1100	Si+Fe 0.95 Max	–	0.05 Max	0.05 – 0.20	–	–	0.10 Max	0.05 Max	–	99.0 Min
EN AW-2011	0.40 Max	–	–	5.00 – 6.00	0.70 Max	–	0.30 Max	–	Bi : 0.20 – 0.60Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	0.20 – 0.80	0.40 – 1.20	3.90 – 5.00	0.70 Max	0.10 Max	0.25 Max	0.15 Max	–	Remainder
EN AW-2024	0.50 Max	1.20 -1.80	0.30 – 0.90	3.80 – 4.90	0.50 Max	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	–	1.00 – 1.50	0.05 – 0.20	0.70 Max	–	0.10 Max	–	0.15 Max	Remainder
EN AW-3103	0.50 Max	0.30 Max	0.90 – 1.50	0.10 Max	0.70 Max	0.10 Max	0.20 Max	0.10 Max	–	Remainder
EN AW-6101A	0.30 – 0.7	0.40 – 0.90	0.03 Max	0.05 Max	0.40 Max	–	–	–	0.10 Max	Remainder
EN AW-6005	0.60 – 0.90	0.40 – 0.60	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6351	0.70 – 1.30	0.40 – 0.80	0.40 – 0.80	0.10 Max	0.50 Max	–	0.20 Max	0.20 Max	0.15 Max	Remainder
EN AW-6060	0.30 – 0.60	0.35 – 0.60	0.10 Max	0.10 Max	0.10 – 0.30	0.05 Max	0.15 Max	0.10 Max	–	Remainder
EN AW-6061	0.40 – 0.80	0.80 – 1.20	0.15 Max	0.15 – 0.40	0.70 Max	0.04 – 0.35	0.25 Max	0.15 Max	–	Remainder
EN AW-6063	0.20 – 0.60	0.45 – 0.90	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6082	0.70 – 1.30	0.60 -1.20	0.40 – 1.00	0.10 Max	0.50 Max	0.25 Max	0.20 Max	0.10 Max	–	Remainder

Alloy	Temper	UTS (Mpa)		Yield Strength (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A	F	60	–	20	–	23
EN AW-1050 A	O	60	95	20	–	23
EN AW-1070 A	F	60	–	20	–	23
EN AW-1100	O	75	110	–	–	25
EN AW-2011	T4	275	–	125	–	12
EN AW-2011	T6	310	–	230	–	6
EN AW-2014	O	–	250	–	135	10
	T4	370	–	230	–	11
	T6	415	–	370	–	5
EN AW-2024	O	–	250	–	150	10
	T3,T3510,T3511	395	–	290	–	6
	T8,T8510,T8511	455	–	380	–	4
EN AW-3003	F	95	–	35	–	20
EN AW-3003	O	95	135	35	–	20
EN AW-3103	F	95	–	35	–	20
EN AW-3103	O	95	135	35	–	20
EN AW-6101A	T6	200	–	170	–	8
EN AW-6005	T4	180	–	90	–	13
EN AW-6005	T6	270	–	225	–	6
EN AW-6351	O	–	160	–	110	12
	T4	205	–	110	–	12
	T6	290	–	250	–	6
EN AW-6060	T4	120	–	60	14	12
	T5	160	–	120	–	6
	T6	190	–	150	–	6
	T64	180	–	120	–	10
	T66	215	–	160	–	6
EN AW-6061	O	–	150	–	110	14
	T4	180	–	110	–	13
	T6	260	–	240	–	6
EN AW-6063	O	–	130	–	–	16
	T4	130	–	65	–	12
	T5	175	–	130	–	6
	T6	215	–	170	–	6
	T66	245	–	200	–	6
EN AW-6082	O	–	160	–	110	12
	T4	205	–	110	–	12
	T5	270	–	230	–	6
	T6	290	–	250	–	6
