Stainless Steel Pipe/Tube

Product name:

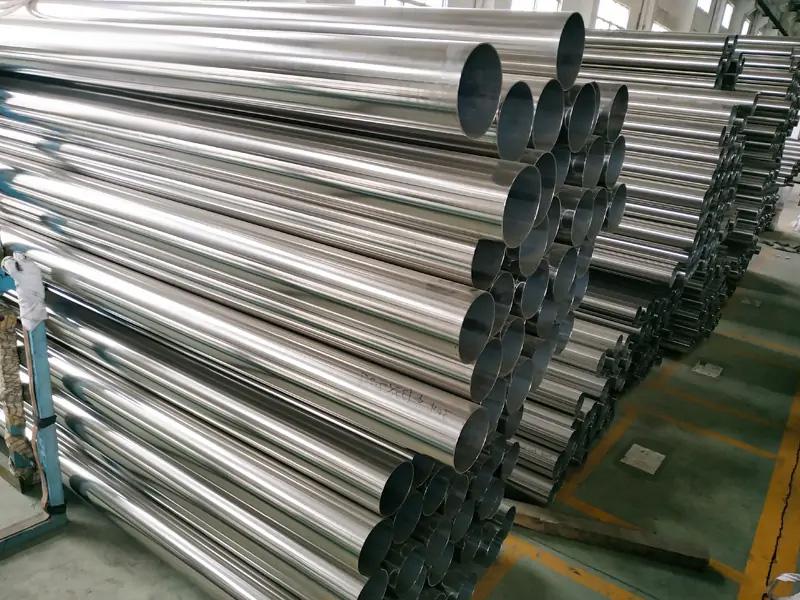

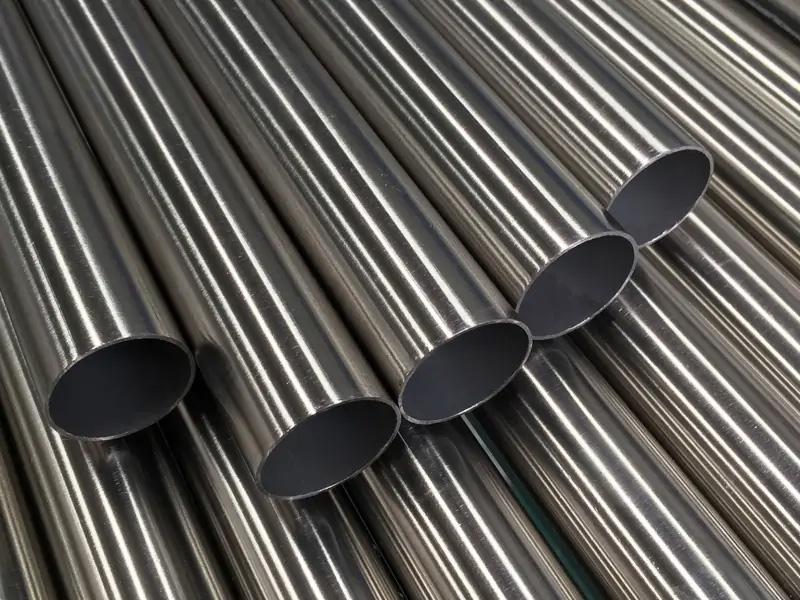

SUS310S/S31008,310S/1.4845 Stainless Steel Welded Tube/Pipe
Stainless steel welded pipe, referred to as welded pipe, is commonly welded into steel pipe made of steel or steel strip after being curled and formed by the unit and mold. The production process of welded steel pipe is simple, the production efficiency is high, there are many varieties and specifications, and the equipment investment is small, but the general strength is lower than that of seamless steel pipe.
INFORMATION PRODUCTS

‹

›

‹

  • SUS310S/S31008,310S/1.4845 Stainless Steel Welded Tube/Pipe
  • SUS310S/S31008,310S/1.4845 Stainless Steel Welded Tube/Pipe
  • SUS310S/S31008,310S/1.4845 Stainless Steel Welded Tube/Pipe

›

Product Details
Chemical Composition
Mechanical Behavior
Product NameStainless steel welded pipe
StandardASTM AISI DIN, EN, GB, JIS
Steel Grade200 Series: 201,202
300 Series: 301,304,304L,316,316L,316Ti,317L,321,309s,310s
400 Series: 409L,410,410s,420j1,420j2,430,444,441,436
Duplex Steel: 904L,2205,2507,2101,2520,2304
Outer Diameter6-2500mm(as required)
Thickness0.3mm-150mm (as required)
Length2000mm/2500mm/3000mm/6000mm/12000mm(as required)
TechniqueSeamless
SurfaceNo.1 2B BA 6K 8K Mirror No.4 HL
Tolerance±1%
GradeCSiMnpSNiCrMoN
254SMO≤0 .02≤0.8≤1.0≤0.04≤ 0.0317.5-18.519.5-20.56.0-6.50.18-0.20
904L≤0 .02≤1.0≤2.0≤0.045≤0.03523.0-28.019.0-23.04.0-5.0≤0.1
654SMO≤0 .02≤0 .52.0-4.0≤0.03≤0.00521.0-23.024.0-25.07.0-8.00.45-0.55
253MA0.05-0.11.4-2.0-≤0.045≤ 0.0310.0-12.020.0-22.0-0.14-0.20
AL-6XN≤0 .02≤1.0≤2.0≤0.04≤ 0.0123.5-25.520.0-22.06.0-7.00.18-0.25
304≤0 .08≤1.0≤2.0≤0.045≤ 0.038.0-10.518.0-20.0--
304L≤0.03≤1.0≤2.0≤0.035≤ 0.039.0-13.018.0-20.0--
309S≤0.08≤1.0≤2.0≤0.045≤ 0.0312.0-15.022.0-24.0--
310S≤0.08≤1.5≤2.0≤0.035≤ 0.0319.0-22.024.0-26.0--
316≤0.08≤1.0≤2.0≤0.045≤ 0.0310.0-14.016.0-18.02.0-3.0-
316L≤0 .03≤1.0≤2.0≤0.045≤ 0.0312.0-15.016.0 -18.02.0 -3.0-
S32760≤ 0 .03≤1.0≤1.0≤0.035≤ 0.0156.0-8.024.0 -26.03.0-4.00.2-0.3
S32750≤ 0 .03≤0.8≤1.2≤0.035≤0.026.0-8.024.0-26.02.0-3.00.24-0.32


GradeStateHardness HVYield StrengthTensile StrengthElongation(%)
SUS304ANN<200>205>520>40
1/4H200-250>255>550>35
1/2H250-310>470>780>6
3/4H310-370>665>930>3
H370-430>880>1130--
SUS301ANN<250>205>520>40
1/4H250-310>470>780>35
1/2H310-370>510>930>10
3/4H370-430>745>1130>5
H430-490>1030>1320>3
EH490-550>1275>1570--
SH>550>1500>1850--
SUS201ANN<200>205>515>40
1/4H200-250>250>550>35
1/2H250-310>470>780>6
3/4H310-370>665>930>3
H370-430>880>1130--
SUS430ANN<200>205>450>22
1/2H200-250>330>505>10
H250-310>420>750>6
SUS443ANN<200>305>483>31
SUS310S≤200<200>205>520>40
SUS316L≤200<200>310>620>40
