Name: Carbon Steel Channel Bar
SKU: 0

Carbon Steel Profile



Location： ГЛАВНАЯ > PRODUCTS > Profile Steel > Carbon Steel Profile > Carbon Steel Channel Bar

Product name:

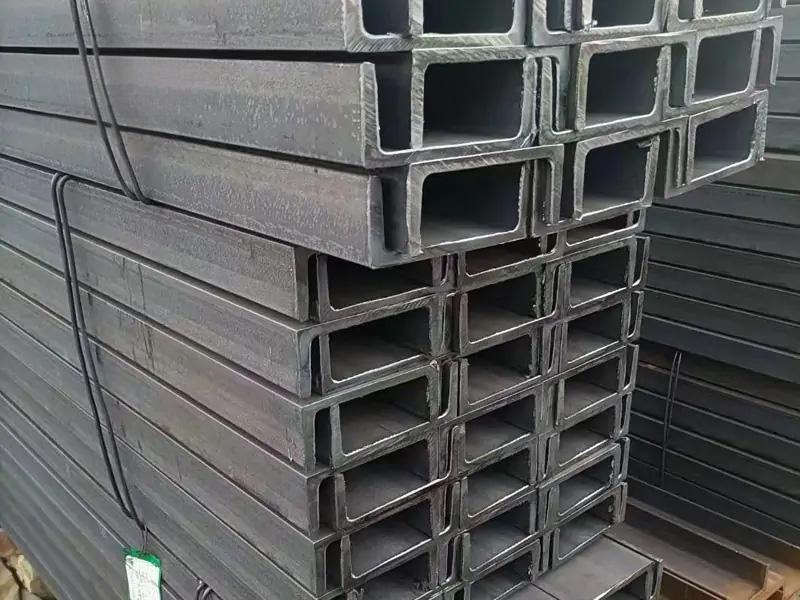

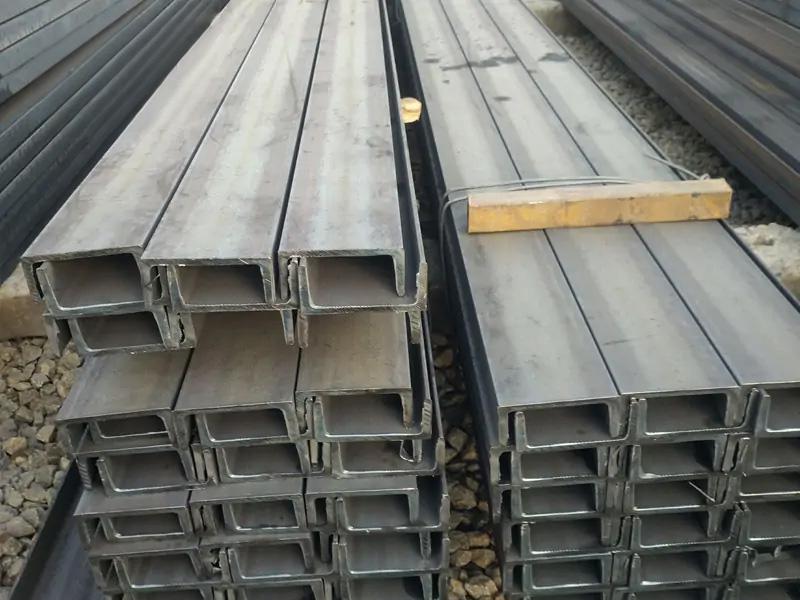

Carbon Steel Channel Bar

Carbon steel, also known as carbon steel, is an iron-carbon alloy with an internal carbon content of nearly 2%. It can be used as a general engineering structure and ordinary mechanical parts, with complex manufacturing shapes, high mechanical property requirements, and difficult to form by forging and other methods in the process.

INFORMATION PRODUCTS

Product Details

Chemical Composition

Mechanical Behavior

Product Name	Carbon Steel Profile Hbeam
Size	100mm-900mm
Wall thickness	1.5mm-28mm
Length	6m-12m ,by customer's requiremnts
Materials	Q195,Q215,Q235B,Q345B, S235JR/S235/S355JR/S355SS440/SM400A/SM400B
Technique	HOT ROLLED
Package	clients' requirement and Standard export sea-worthy packing
Another Name	Hot rolled mild steel I beam , I beam , H beam ,steel beam ,beam
MOQ	1tons.We also can accept sample order.
Shipment time	Within 7-15 workdays after receiving deposit or L/C

Grade	C	Si	Mn	P	S	Cu	Cr	Ni
Cor-ten A	0.12	0.25-0.75	0.20-0.50	0.01-0.2	0.03	0.25-0.55	0.5-1.25	0.65
Cor-ten B	0.16	0.3-0.5	0.8-1.25	0.03	0.03	0.25-0.40	0.4-0.65	≤0.4
SPA-H	0.12	0.2-0.75	0.60	0.07-0.15	0.035	0.25-0.55	0.3-1.25	0.65
9CuPCrNi-A	0.12	0.2-0.75	0.20-0.50	0.07-0.15	0.040	0.25-0.55	0.3-1.25	0.65
Q235NH	0.13	0.10-0.40	0.20-0.60	0.03	0.030	0.25-0.55	0.40-0.80	0.65
Q295NH	0.15	0.10-0.50	0.30-1.00	0.03	0.030	0.25-0.55	0.40-0.80	0.65
Q355NH	0.16	0.5	0.50-1.50	0.03	0.030	0.25-0.55	0.40-0.80	0.65
Q415NH	0.12	0.65	1.10	0.025	0.030	0.20-0.55	0.30-1.25	0.12-0.65
Q460NH	0.12	0.65	1.50	0.025	0.030	0.20-0.55	0.30-1.25	0.12-0.65
Q500NH	0.12	0.65	2.0	0.025	0.030	0.20-0.55	0.30-1.25	0.12-0.65
Q550NH	0.12	0.65	2.0	0.025	0.030	0.20-0.55	0.30-1.25	0.12-0.65
Q265GNH	0.12	0.10-0.40	0.20-0.50	0.07-0.12	0.020	0.2-0.45	0.30-0.65	0.25-0.50
Q295GNH	0.12	0.10-0.40	0.20-0.50	0.07-0.12	0.020	0.25-0.45	0.30-0.65	0.25-0.50
Q310GNH	0.12	0.25-0.75	0.20-0.50	0.07-0.12	0.020	0.25-0.55	0.30-1.25	0.65
Q355GNH	0.12	0.20-0.75	1.00	0.07-0.15	0.020	0.25-0.55	0.30-1.25	0.65
Q345GNHL	0.12	0.25-0.75	0.20-0.50	0.07-0.15	0.035	0.25-0.55	0.30-0.65	0.65
Q295GQR2	0.12	0.10-0.40	0.20-0.50	0.06-0.12	0.020	0.25-0.45	0.30-0.65	0.25-0.5
Q295GQR3	0.12	0.20-0.40	0.25-0.55	0.06-0.12	0.020	0.25-0.50	---	---
Q345NQR2	0.12	0.25-0.75	0.20-0.50	0.06-0.12	0.020	0.25-0.50	0.3-1.25	0.12-0.65
Q345NQR3	0.12	0.20-0.50	0.25-0.70	0.06-0.12	0.020	0.25-0.50	---	---
Q400NQR1	0.12	0.75	1.10	0.025	0.008	0.25-0.55	0.3-1.25	0.12-0.65
Q450NQR1	0.12	0.75	1.50	0.025	0.008	0.25-0.55	0.3-1.25	0.12-0.65
Q500NQR1	0.12	0.75	2.00	0.025	0.008	0.25-0.55	0.3-1.25	0.12-0.65
Q550NQR1	0.16	0.75	2.00	0.025	0.008	0.25-0.55	0.3-1.25	0.65

Carbon content (wt.%)	Microstructure	Properties	Examples
Low-carbon steel	< 0.25	Ferrite, pearlite	Low hardness and cost. High ductility, toughness, machinability and weldability	AISI 304, ASTM A815, AISI 316L
Medium-carbon steel	0.25 – 0.60	Martensite	Low hardenability, medium strength, ductility and toughness	AISI 409, ASTM A29, SCM435
High-carbon steel	0.60 – 1.25	Pearlite	High hardness, strength, low ductility	AISI 440C, EN 10088-3
